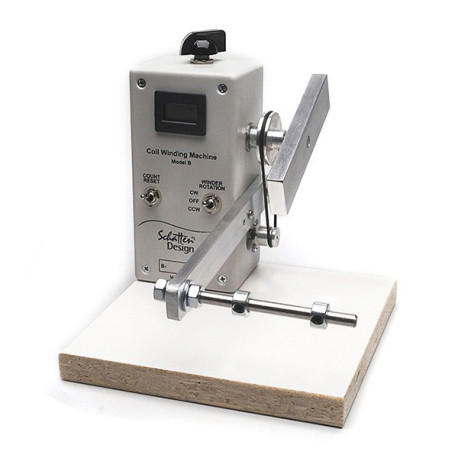

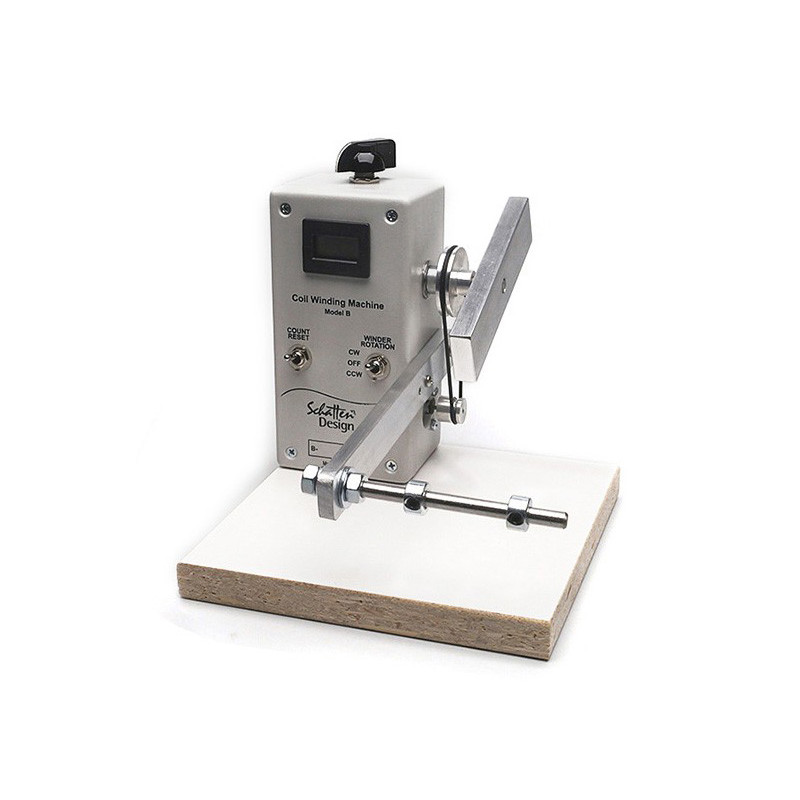

SCHATTEN® MODEL B COIL WINDING MACHINE KIT(INCL POWER SUPPLY)

Model B winding machine kits are designed to wind coil wire from 38 ga. to 44 gauge or finer. It is a small profile machine fully capable of winding thousands of pickups over its service life. Everything that you need to assemble a fully working Model B winding machine is provided in this pre-drilled easy to assemble kit. Assembly consists mostly of some soldering work and installation of parts on the machine. Average assembly time is between forty five minutes and one hour. The only things that we don't supply are the simple hand tools and the solder and soldering iron. Features: Speed control, resettable electronic counter, rotation direction via selector switch, cross Feed limit assembly, outside drive belt for easy replacement, heavy duty ABS enclosure. Specifications: - Maximum speed (no load): 1250 rpm - Average winding speed: up to 900 rpm - Motor: 9v dc brushed motor, fractional hp - Power supply furnished with machine: 9 volt 500 milliamp, tip positive.
