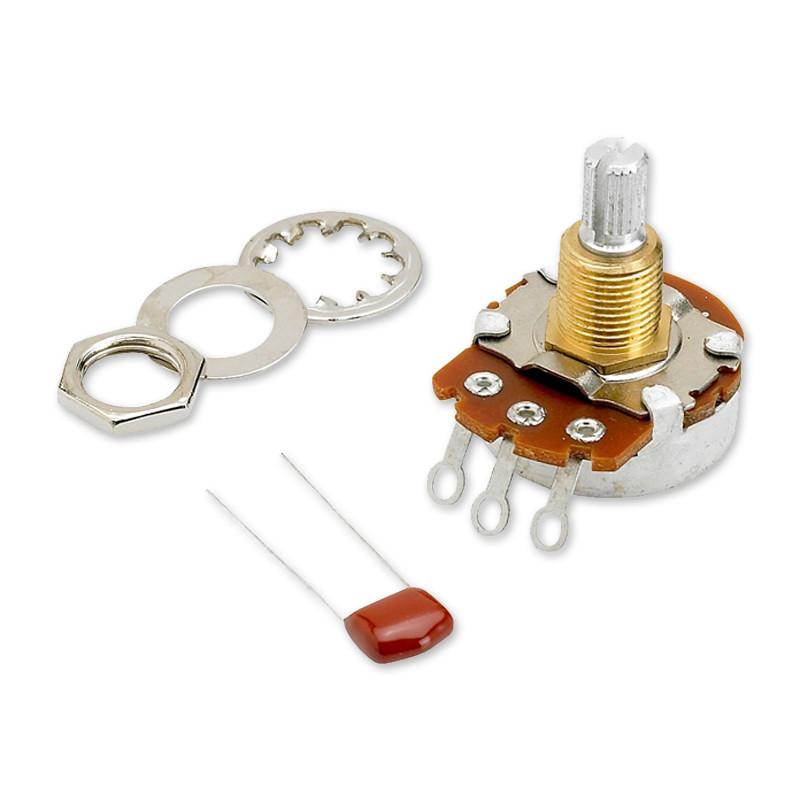

FENDER® 500K SPLIT SHAFT POTENTIOMETER (VOL OR TONE)

CTS® POTENTIOMETER 6mm SPLIT SHAFT 500K AUDIO

EP-0086-000

CTS® POTENTIOMETER SPLIT SHAFT 500K AUDIO - 24 Splines 6mm split shaft - Aluminum bushing and shaft - 15% Tolerance - Threaded shaft is 3/8" (9.52mm) in length and 3/8" (9.52mm) in diameter

CTS® POTENTIOMETER VINTAGE STYLE 6mm SPLIT SHAFT 500K AUDIO

EP-4386-000

CTS 500K AUDIO POT VINTAGE

CTS® POTENTIOMETER 295 SERIES 4 CONTACTS SHORT THREAD 6mm SPLIT SHAFT 500K AUDIO

EP-4826-000

CTS 500K 295 SERIES AUDIO POT

CTS® POTENTIOMETER 6mm SPLIT SHAFT 10% TOLERANCE 500K AUDIO

CTS-500A

CTS 500K AUDIO REGULAR SHAFT Axis Length:12.5mm / Base diameter:23.5mm / Total Length:3.4mm / Axis Type: notched / Axis Type 2: 6mm

CTS® MINI POTENTIOMETER 6mm SPLIT SHAFT 500K AUDIO

EP-5486-000

CTS MINI POT 500K AUDIO

FENDER® CONCENTRIC 250K/500K AUDIO SOLID SHAFT POTENTIOMETER (VOLUME AND TONE)

0019268049

Top-quality potentiometers used on U.S. Fender® instruments with 3/8" potentiometer shafts. Package includes one concentric 250K/500K audio, solid shaft potentiometer. Does not include mounting hardware or capacitor. Will not work with push-on style control knobs (set screw mounting knobs only). Used for the stacked Volume and Tone controls on the...

FENDER® S-1™ 250K SWITCH/POT SPLIT SHAFT

0061256049

S-1™ switching offers a multitude of extra tonal options for your instrument and can be wired into a variety of configurations (SPST, DPDT for a coil-tap, or 4PDT for a dual humbucking coil tap). This 250K split-shaft S-1 switch works great with a five-way Stratocaster® "Super" switch (Fender part number 0992251000). Accepts push-on knobs only (sold...

FENDER® PURE VINTAGE 250K SPLIT SHAFT POTENTIOMETER WITH MOUNTING HARDWARE

0990830000

Fender offers a wide selection of Pure Vintage electronics to players looking to restore or upgrade their guitar or amplifier with classic Fender in mind. From potentiometers to select capacitors, tube sockets and more, these electronics are created to closely replicate original-era Fender parts and have been used on a number of Fender reissue instruments...

FENDER® PURE VINTAGE 250K SOLID SHAFT POTENTIOMETER WITH MOUNTING HARDWARE

0990831000

Fender offers a wide selection of Pure Vintage electronics to players looking to restore or upgrade their guitar or amplifier with classic Fender in mind. From potentiometers to select capacitors, tube sockets and more, these electronics are created to closely replicate original-era Fender parts and have been used on a number of Fender reissue instruments...

FENDER® 250K NO-LOAD SPLIT SHAFT POTENTIOMETER (VOL. OR TONE)

0990832000

An integral part of the Delta Tone™ system used on Fender® American Series electric guitars, the "No-Load" potentiometer functions as a normal tone control from 1 to 9. At 10, however, the tone control is taken out of the circuit for increased output and overall tonal response. The 250K is usually associated with most single-coil pickups. 3/8"...

FENDER® 250K NO-LOAD SOLID SHAFT POT (VOL. OR TONE)

0990833000

An integral part of the Delta Tone™ system used on Fender® American Series electric guitars, the "No-Load" potentiometer functions as a normal tone control from 1 to 9. At 10, however, the tone control is taken out of the circuit for increased output and overall tonal response. The 250K control is typically associated with single-coil pickups. 3/8"...

FENDER® 500K SOLID SHAFT POTENTIOMETER (VOL. OR TONE)

0990835000

Top-quality potentiometers used on U.S. Fender® instruments. The 500K is usually associated with most humbucking pickups. 3/8" potentiometer shaft. Solid shaft design. Works with set screw mounting knobs. Mounting nut, washer, and .022mf 250V capacitor included. Fits nearly all Fender instruments (U.S. and Mexico) requiring a solid-shaft potentiometer.

FENDER® DUAL 500K/250K SPLIT SHAFT POTENTIOMETER

0990847000

Top-quality potentiometers used on U.S. Fender® instruments with 3/8" potentiometer shafts. Package includes one concentric 250K/500K audio, solid shaft potentiometer. Does not include mounting hardware or capacitor. Will not work with push-on style control knobs (set screw mounting knobs only). Used for the stacked Volume and Tone controls on the...

FENDER® TBX (TREBLE BASS EXPANDER) TONE CONTROL POTENTIOMETER KIT

0992052000

The Treble Bass Expander (TBX) is a detented, stacked 250K / 1Meg control that enhances your tonal palette. It functions as a standard tone control from 1 to 5; after 5 it decreases resistance, letting more bass, treble, presence and output flow to your amp. No battery necessary. Each TBX Tone Control comes with a .022mf capacitor, 1/4 watt resistor,...

FENDER® 250K PUSH/PULL SPLIT SHAFT POTENTIOMETER

0992257000

Add a coil tap or phase switch to your guitar without having to drill extra holes. This standard 250K potentiometer has the added feature of a push-pull double-pole/double-throw switch. Simply pull up on the knob to engage the switch. Includes mounting hardware. Dimensions 0.75x4.50x5.50 IN Poids 0.20 LB

FENDER® S-1™ 250K SWITCH/POT SOLID SHAFT

0061260049

S-1™ switching offers a multitude of extra tonal options for your instrument and can be wired into a variety of configurations (SPST, DPDT for a coil-tap, or 4PDT for a dual humbucking coil tap). This 250K solid-shaft S-1 switch works great with a five-way Stratocaster® "Super" switch (Fender part number 0992251000). Accepts set-screw knobs only (knob,...

EVH® CUSTOM POTENTIOMETER LOW FRICTION 250K

0220831000

EVH® CUSTOM POTENTIOMETER LOW FRICTION 250K Axis Length: 9.6mm / Base diameter: 23.7mm / Total Length: 30.4mm / Axis Type: Smooth / Axis Type 2: 6.35mm

EVH® CUSTOM POTENTIOMETER LOW FRICTION 500K

0220835000

EVH® CUSTOM POTENTIOMETER LOW FRICTION 500K Axis Length: 9.6mm / Base diameter: 23.7mm / Total Length: 30.4mm / Axis Type: Smooth / Axis Type 2: 6.35mm

FENDER® CTS 50K AUDIO SPLIT SHAFT

0021682049

50K split shaft potentiometer. 3/8" potentiometer shaft. Accepts push-on style knobs. Includes mounting hardware. Used in the Powerhouse Strat, Eric Clapton Stratocaster for mid boost, and other guitars with active electronics.

FENDER® 250K PICKUP PAN POTENTIOMETER

0049441000
